(3) 2 MW Natural Gas Generators

By Order of US District Court Receivership, in the Matter of Touchstone Pistachio…

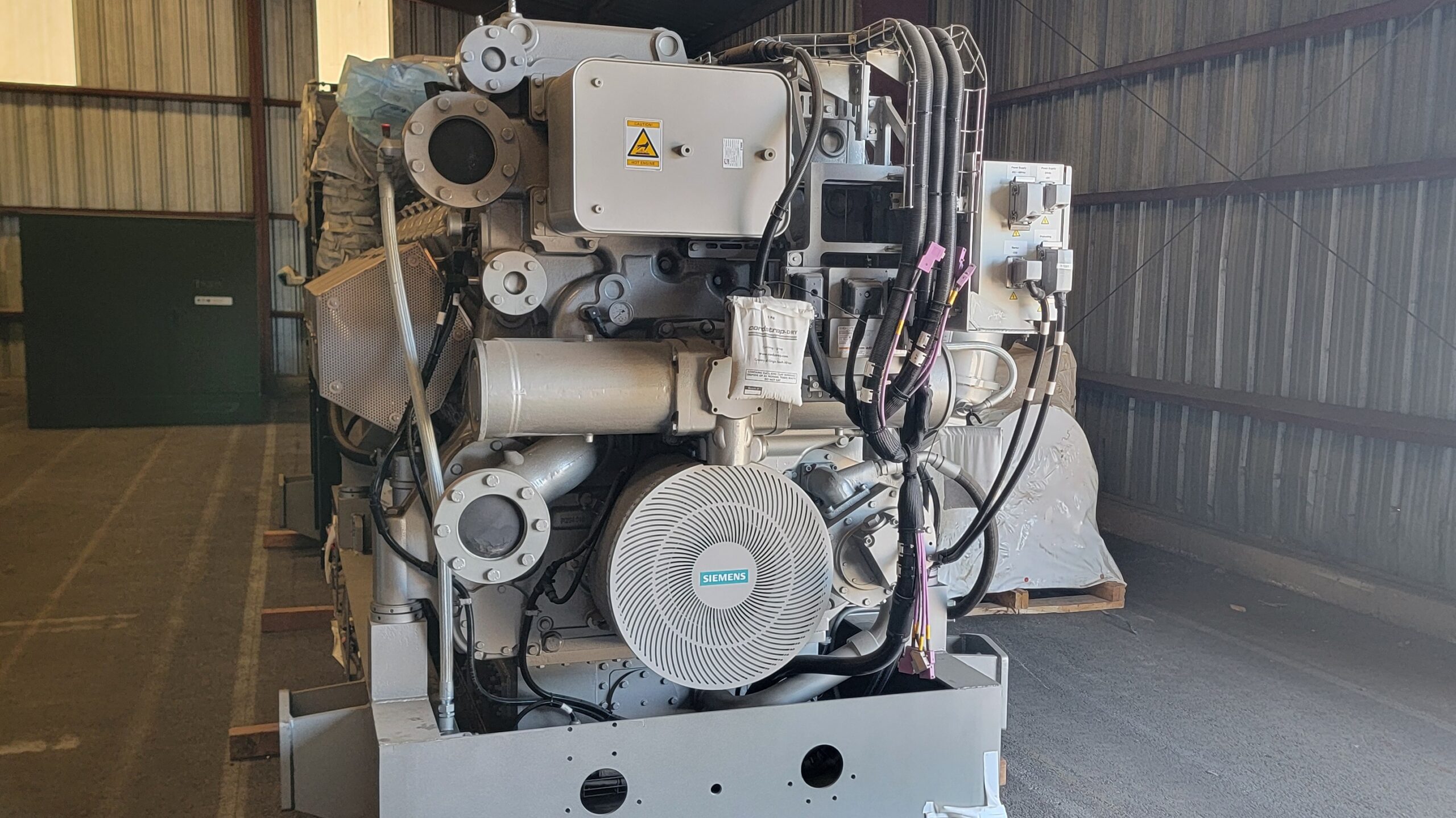

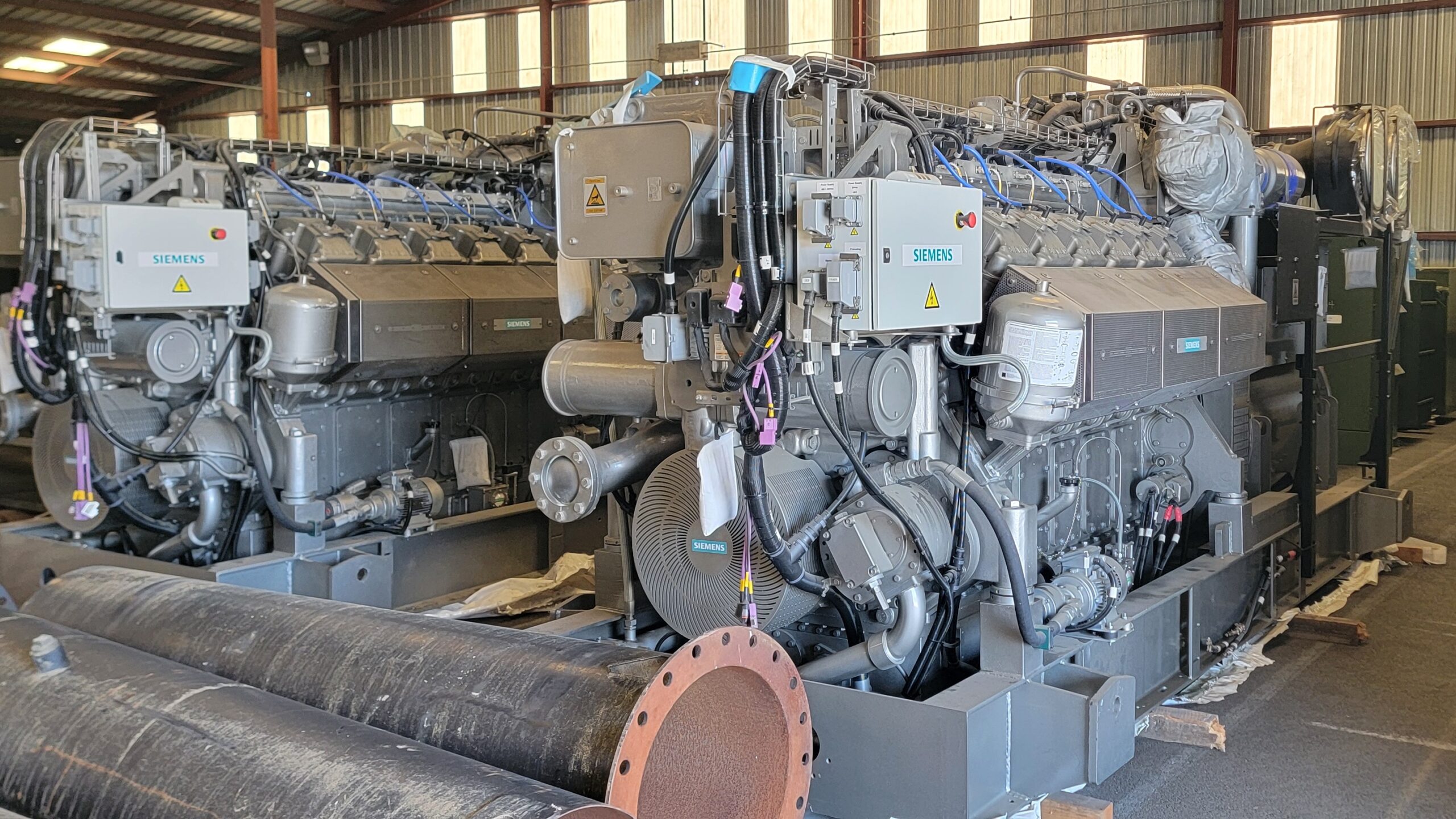

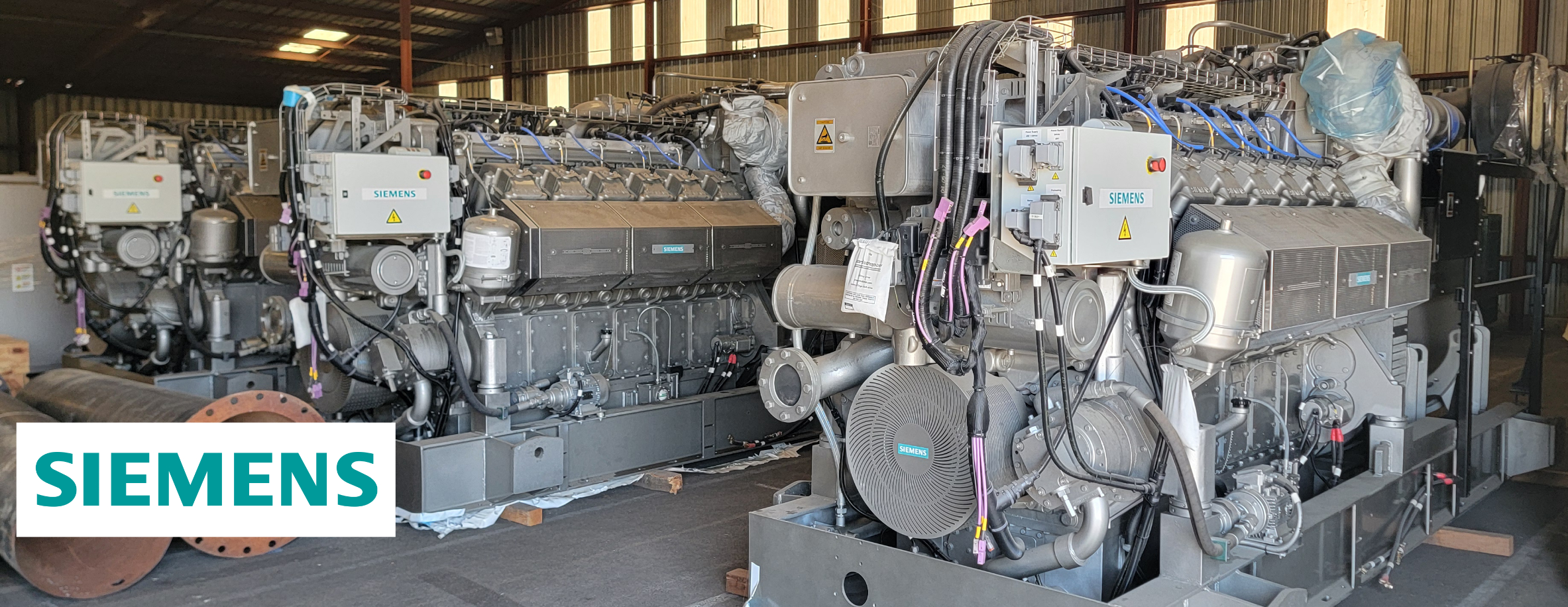

(3) Unused 2 MW Siemens Generator Sets
Available individually, or purchase as a package for a 6 MW power plant
UNITS LOCATED IN CENTRAL CALIFORNIA

• MANUFACTURER: Siemens

• YEAR: 2020

• ENGINE: 2769 BHP, 2065 KW, SGE-100EM, Cylinder V12, Bore/Stroke 195 mm/280 mm, Compression Ratio 13.5:1, Electrical Efficiency 44.5%, Emissions NOX 1 g/bHPh, Fuel Consumption 4,443 BTU/KWh, 1200 RPM, CW Rotation.

• FUEL TYPE: Natural Gas

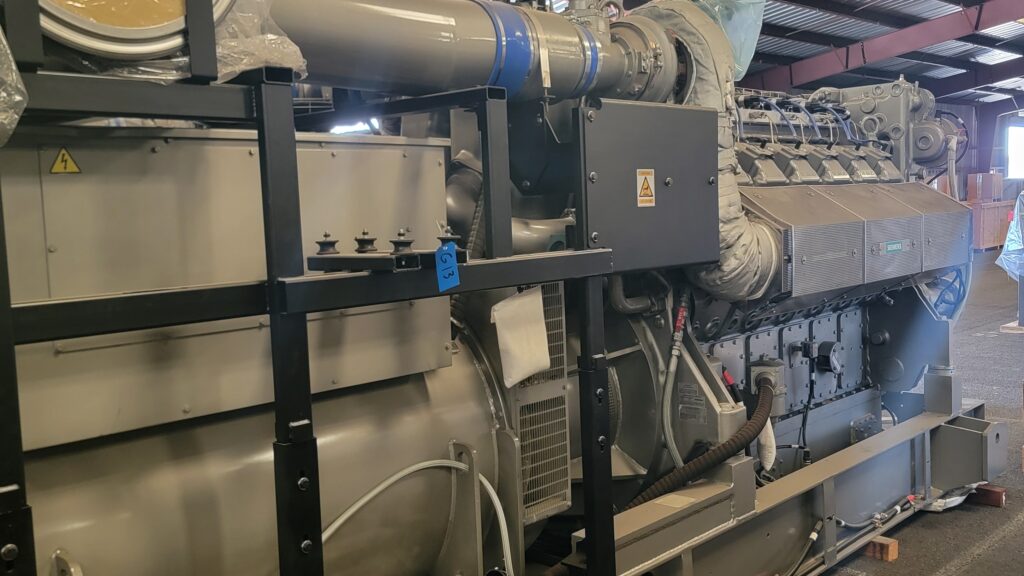

• GENERATOR: Leroy Somer Nidec 2479 KVA, 1983 KW, 12470 Volt, 3 Phase, 60 hz, PF 0.8, Type LSA 54 VL75/6P, WYE , 6 Wires, Brushless Exciter, CW Rotation, Self Ventilated.

• HERTZ: 60

• PHASE: 3 Phase

• MOBILITY: Skid Mounted

• CONDITION: Unused

• INCLUDES:
  – Generator Terminal Box with Voltage Regulator D550 Digital, 3 x CTS , 2 x VTs.

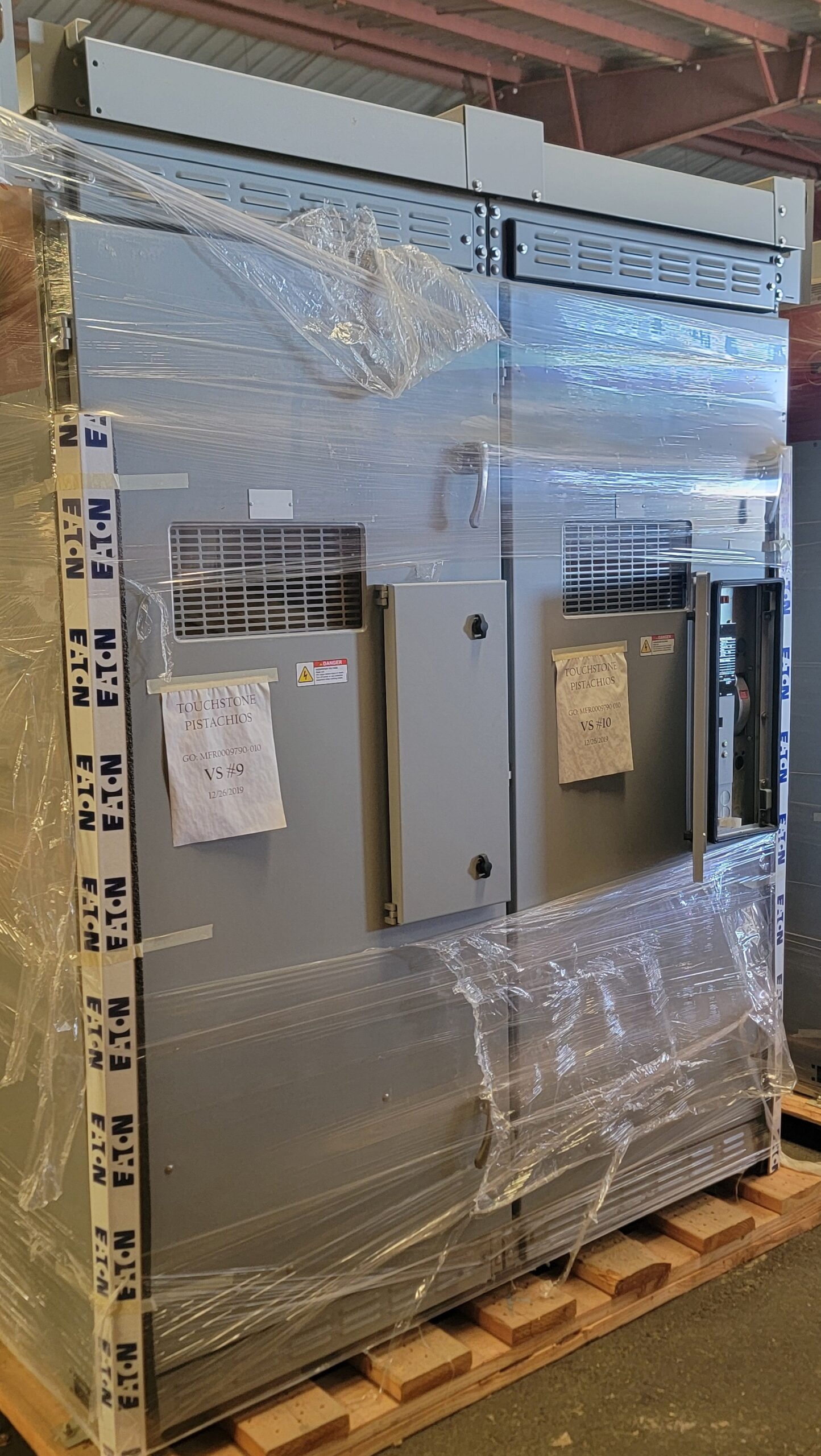

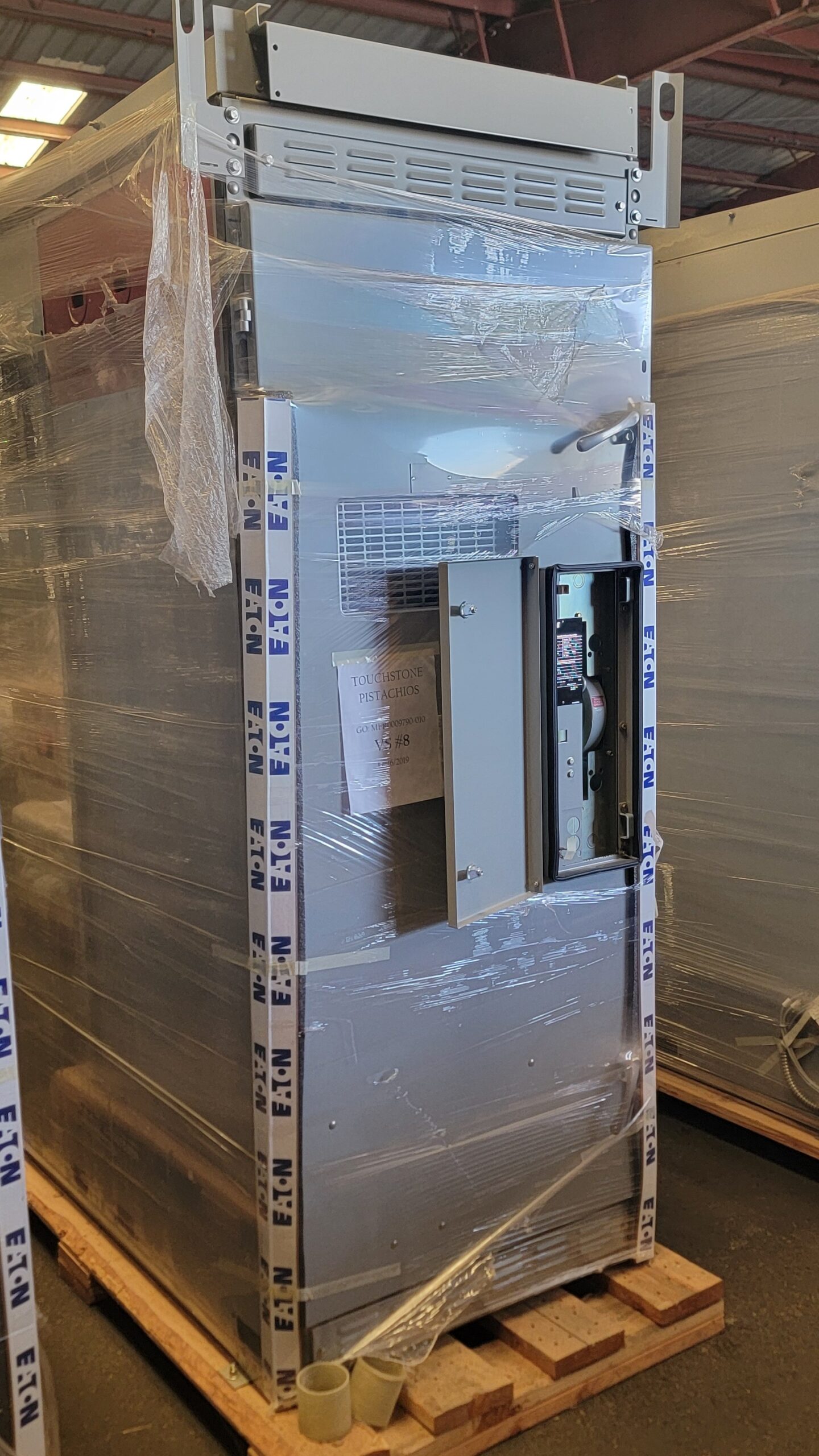

  -1200 AMP Siemens GMSG , 40 KA , 125v CDA Trip and Close Generator Circuit Breaker, with SEL-700G Generator Protection Relay.
  -Gas Train Inlet Pressure 14.5 -58 PSIG.
  -Starting Batteries for Electric Start.
  -Oil Pump, Oil Filter, Oil Cooler, Oil Piping.

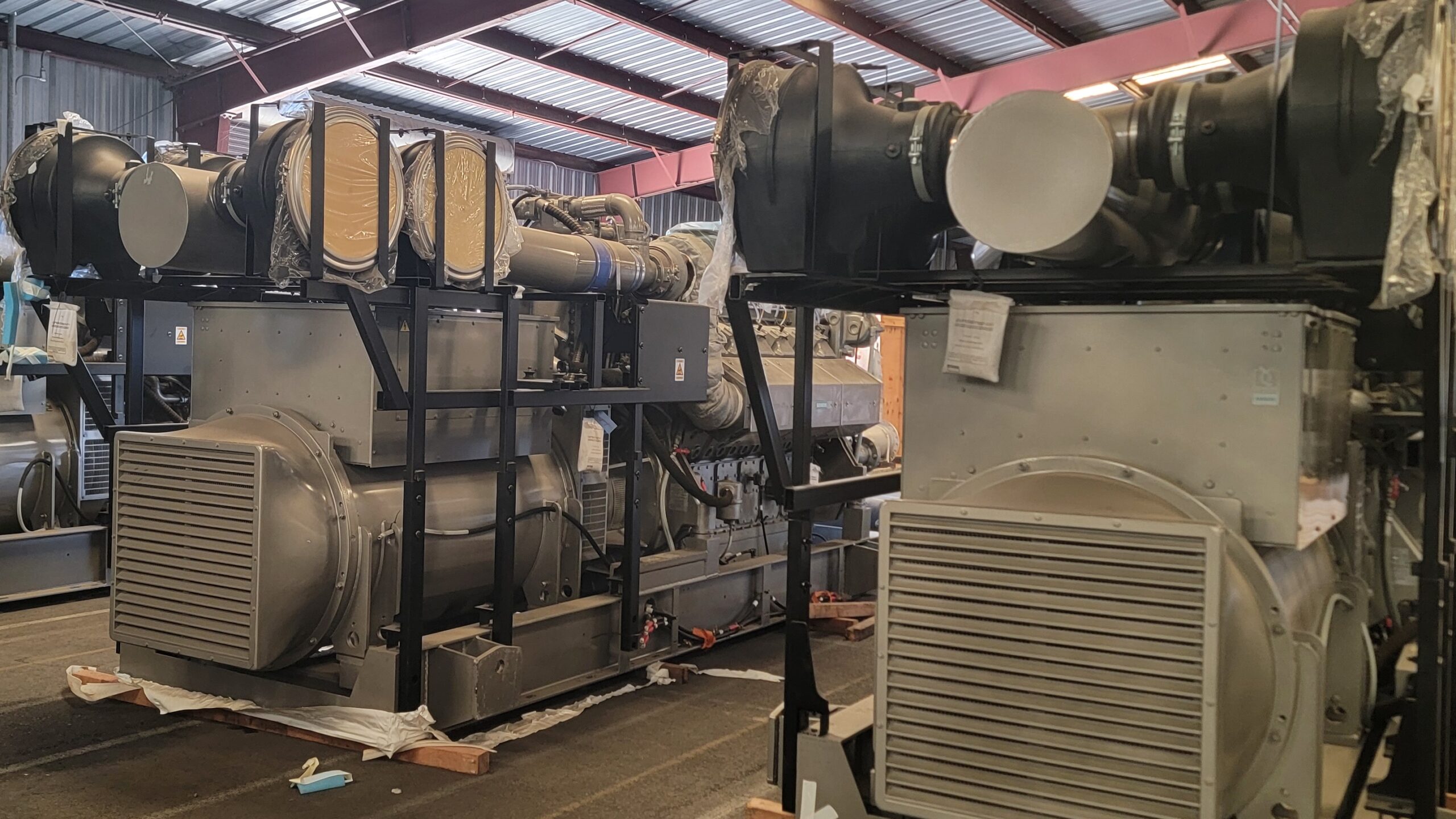

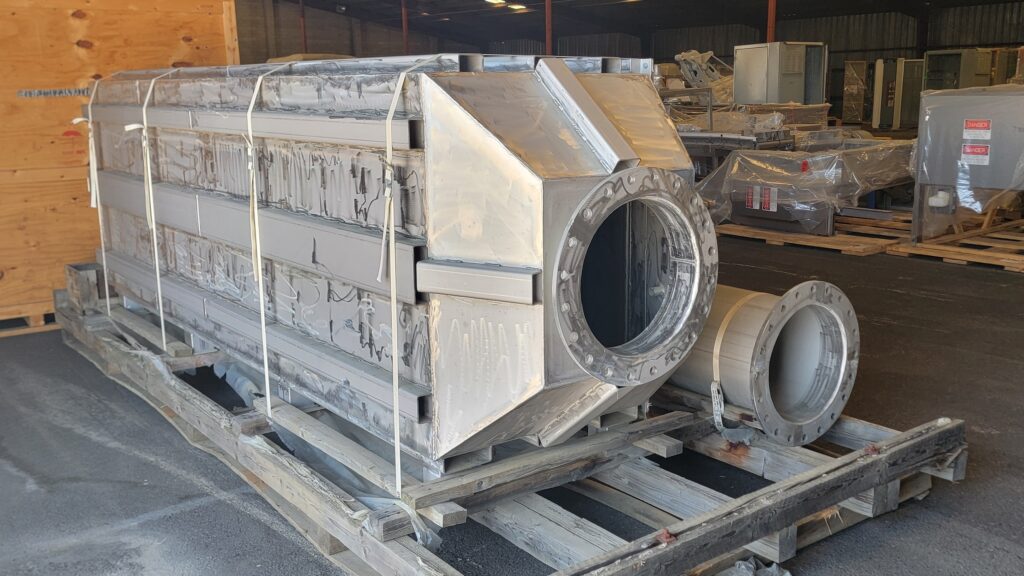

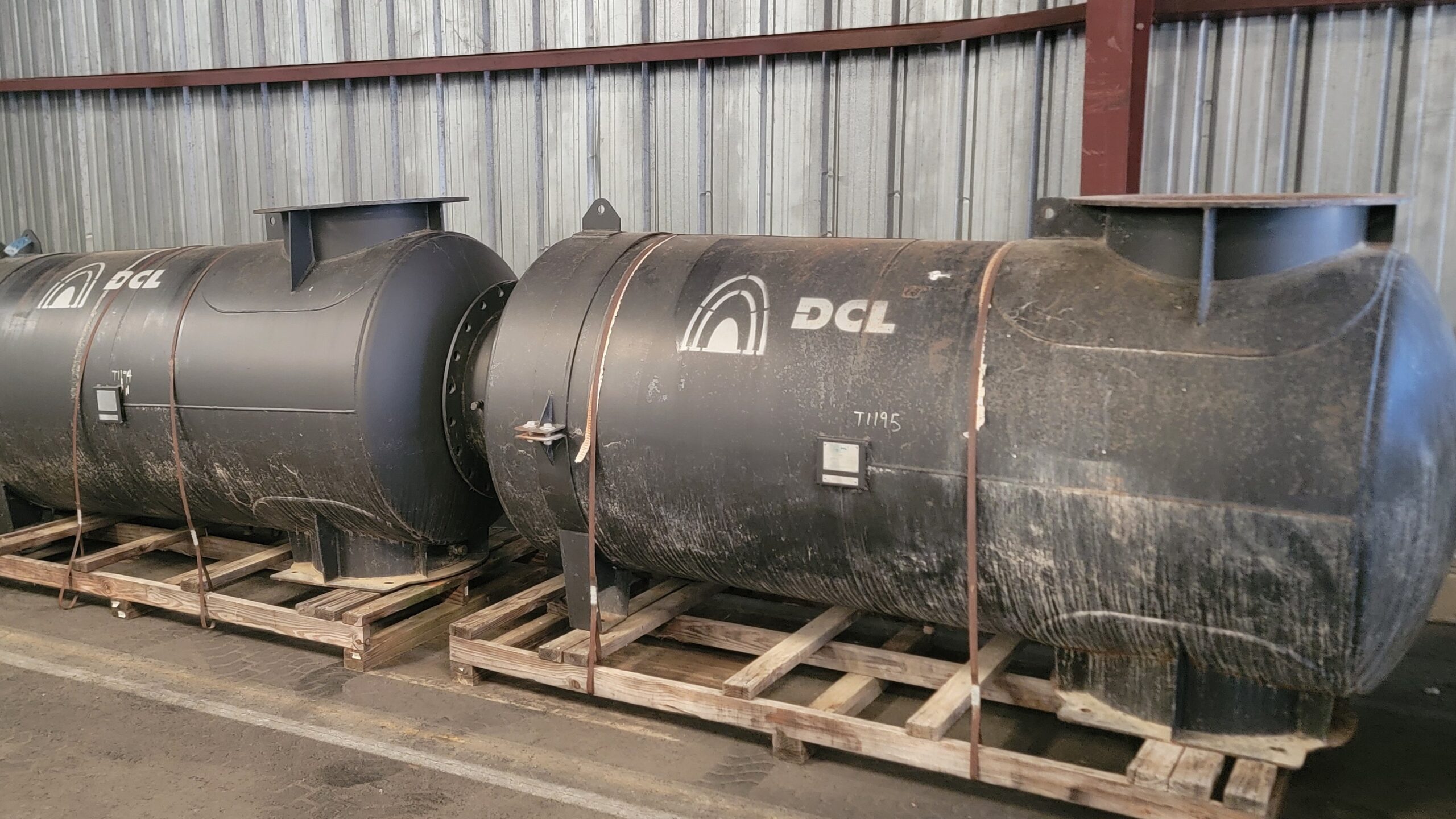

  -Exhaust Expansion Joint, Exhaust Silencer, Exhaust Pipe.
  -Vibration Pads for Mounting.
  -Young Touchstone Radiator, 26.9 HP Fan 122 GPM Air/Water Cooled, Piping, Water Pump.
  -Siemens PLC GCS-E Control System with Instrumentation (Siemens 12470 V Switchgear line up Available)
